Wichita Clutch Leads Industry with 3000 HP Test Stand Capability

February 19, 2013 Clutch Brake
Wichita Test Stand

When Wichita Clutch of Wichita Falls in Texas, USA, decided to upgrade their test stand, Richard Mayberry, Chief  Engineering Manager of Wichita Clutch assembled a team consisting of Chad Polley, Senior Lab Technician, and Kyle Wyatt, Senior Manufacturing Engineer and Head of Quality to work on the project. One of the most common motor sizes for driving many of the applications utilizing a Wichita Clutch is 1,500 HP (1,118 kW). Mayberry knew that he wanted a variable frequency drive (VFD) to operate their new 1,500 HP test stand  and turned to Vacon for a solution.

“Not only would the new VFD and 1,500 HP test stand allow for static and dynamic load testing of clutches and brakes, but it would set Wichita Clutch apart from the competition,” said Mayberry. No other clutch/brake manufacturer has a test stand this large for verifying clutch/brake performance data, burnishing brakes for customers, and for accelerating research and the development of new products.

Integrated Drive Systems of Houston, Texas, USA, was contracted to build a 1,500 HP drive test stand system. The 600 volt, 18 pulse, 1,500 HP (1,118 kW) drive was built using three VACON. NFE* diode bridge rectifiers, and four VACON. inverter modules (frame size FI-10) using patented VACON. DriveSynch technology, a control concept for paralleling high-power VACON. AC drives. The 1,500 HP drive is connected to a 1,500 HP motor that drives a gearbox and ultimately the clutch/brake that is being tested.

The drive system was commissioned in late 2010, has run for 12-16 hours a day, six days a week, until construction of a second VFD test stand system of 1,500 HP began in May 2012.

Some customers provide Wichita Clutch with the load profile they want the clutch/brake to be able to handle. By programming the VFD test stand, Wichita Clutch can physically simulate the customer’s exact application and prove the performance and reliability of the product.

Second test stand doubles capability

Wichita Clutch realized that with just one 1,500 HP test stand they had five man years worth of R&D and testing that they needed to perform. They decided to install a second 1,500 HP test stand. This second test stand will not only allow for testing of 1,500 HP clutches/brakes, but by coordinating it in a “masterfollower” mode with the existing 1,500 HP VFD, the two stands can be used to test 3,000 HP (2,237 kW) clutches/brakes. The new 1,500/3,000 HP integrated test stand system is in process.

Wichita Clutch was recently able to use their test stand to burnish the brakes for a customer who was installing them in an offshore application. The customer received the brakes, installed them, and was up and running much faster than previously would have been possible. The customer saved at least half a day as offshore platform day rates can be as high as USD 500,000/day.

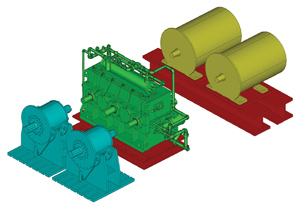

Wichita Clutch Test Stand Render

Wichita Clutch's new dual 1,500 HP (1,118 kW) test stand.

Wichita Clutch of Wichita Falls, TX is part of the heavy-duty clutch and brake division of Altra Industrial Motion. The heavy-duty clutch and brake division consists of Wichita Clutch USA, Wichita Clutch UK, Twiflex Limited UK and Industrial Clutch USA. Together, this group is the global leader in power transmission for heavy-duty industrial pneumatic and hydraulic actuated clutches and brakes. With over 120 years of combined experience and knowledge, the heavy-duty clutch/brake group provides distributors, OEMs and users with a wide range of innovative solutions.

Non-regenerative front-end (NFE) unit is a rectifier that uses diodes/thyristors to feed power to the DC bus of a drive system. It uses an external choke and can control the charging of the DC bus, eliminating the need for a separate charging circuit. NFE units can be used when the flow of power is only towards the motor (motoring applications) and a normal level of harmonics in the supply is acceptable. They can be connected in parallel to increase the available power without requiring communication between the units.
