The Twiflex VMH2 disc brake caliper is comprised of two modules bolted to a central mounting plate, 12mm thicker than the brake disc. Minimum disc thickness is 38mm and minimum disc diameter is 1500mm with no maximum except for practical limitations.

Typically one or two calipers are used per disc, positioned at any angle around the periphery, but the number may be increased depending on disc size.

The ratings shown on the graph are based on fully bedded in and conditioned brake pads with a nominal friction coefficient μ = 0.4. Twiflex disc brakes must be used with Twiflex asbestos free brake pads.

Effective disc radius = actual radius (m) – 0.155m.

Click on image below to download pdf. To order hard copies of literature click here.

Product Catalog

  • Industrial Disc Brakes

Related Literature

  • Twiflex Limited Line Card

Product News

Contact Info

Twiflex
9 Briar Road, Twickenham
Middlesex TW2 6RB – England
Phone: +44 (0) 20 8894 1161
Fax: +44 (0) 20 8755 5601
Email: info@twiflex.com
www.twiflex.com

Twiflex (USA)
2800 Fisher Road
Wichita Falls, TX 76302
Toll Free: 844-723-3483
Phone: 940-723-3483
Fax: 940-723-3436
Email: twiflex.info@twiflex.com
www.twiflex.com

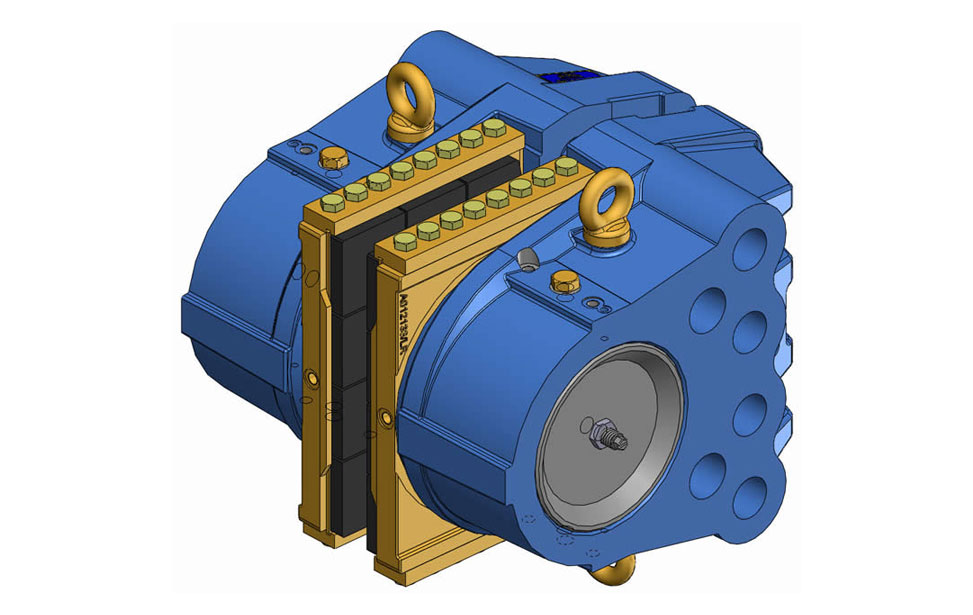

Twiflex VMH Direct Acting Caliper
