VKHD Series Disc Brake Caliper | Twiflex Limited

The Twiflex VKHD disc brake caliper is comprised of two halves, or hydraulic modules, and is suitable for use with a minimum disc thickness of 20mm. The modules are mounted each side of a central mounting plate 12mm thicker than the brake disc. Minimum disc diameter is 1000mm.

Normally one or two calipers are used per disc, but the number may be increased depending on disc size. The brakes may be positioned at any angle around the periphery of the disc, but should ideally be mounted horizontally (i.e. at the 3 o’clock or 9 o’clock position). A range of brake discs is available from Twiflex (see Disc and Hub Assemblies).

The ratings shown on the graph are based on fully bedded in and conditioned brake pads with a nominal friction coefficient μ = 0.4. Twiflex disc brakes must be used with Twiflex asbestos free brake pads.

Effective disc radius = actual radius (m) – 0.095m.

Product Data Sheets

  • VKHD Disc Brake Caliper
Click on image below to download pdf. To order hard copies of literature click here.

Product Catalog

  • Industrial Disc Brakes

Related Literature

  • Twiflex Limited Line Card

Product News

Contact Info

9 Briar Road, Twickenham
Middlesex TW2 6RB – England
Phone: +44 (0) 20 8894 1161
Email: info@twiflex.com
www.twiflex.com

2800 Fisher Road
Wichita Falls, TX 76302
Phone: 1-844-723-3483 (USA)
Email: twiflex.info@twiflex.com

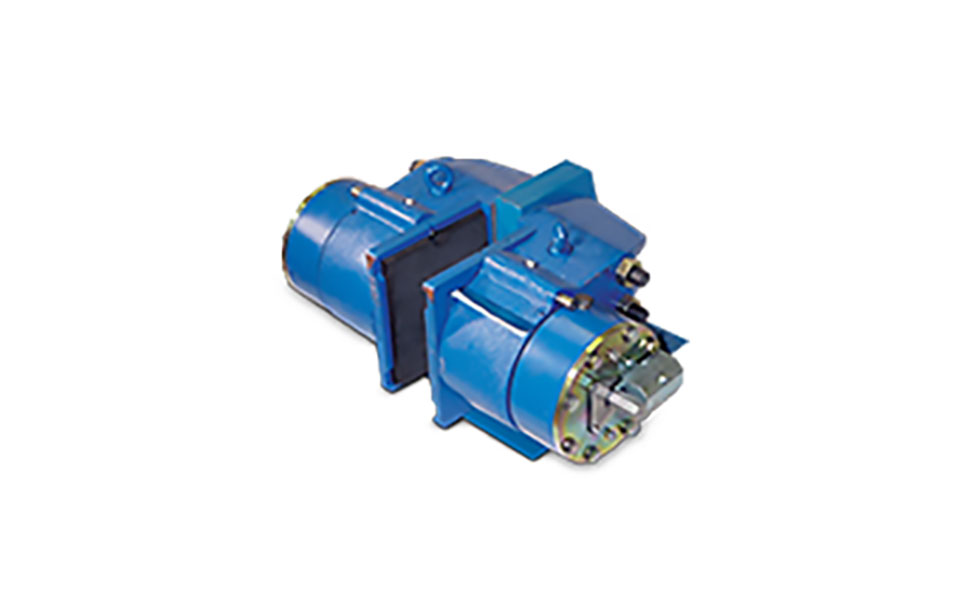

Twiflex VKHD Direct Acting Caliper
